  • Change the World! ガラリと世界が変わる驚き!

  • もっと、はっきり。大切な声を伝えるために。

  • バリアフリーの静けさ。バリアフリーなやさしさ。

Bodyphonのfacebookページへ

ボディホンとは

通話に快適な音環境、まわりに優しい携帯電話ブース

Bodyphon provides a comfortable sound field that allows you to talk on the phone stress-free by mitigating the surrounding noise. This means that the person you are calling will be to hear you clearly too.Easy to hear ,Because less reflected sounds. It means to talk small voice. It is also effective in reducing the sound that escapes outside, so it serves to show consideration for those around you. By placing them in exhibition halls, stations, airports, shopping malls, and other busy areas, as well as hotel or hospital lobbies, offices, and various public facilities, they have the potential to improve the social responsibility of both the users and society as a whole as well.



2013 GOOD DESIGN AWARD (Facilities and equipment for the public)

活用例

Bodyphonはアイデア次第でさまざまな場所・用途でご利用いただけます。

店舗・駅・公共施設など騒音の多い場所、美術館・図書館・病院など静かな場所、オフィスロビーなどでこっそり会話したい場合、歩きスマホ抑止などモバイルマナーの向上に

The Bodyphon provides you “clearer sound” and “ suppressed ambient noise”.By these two effects, it can be utilized in both the noisy location and location where required to silence.The Bodyphon helps you to make a call or operate a terminal device in crowded and noisy environment.We expect that our new product will help to improve our recent mobile-phone usage manner in public place.

How the Bodyphon will be use ?It depends on your new idea.For example, by installing set of the compact speakers, you can enjoy a remarkable realistic sound such as in a movie theater.

You can use it as a TV conference systemwith a small number of people.Or, you can have a communication stronghold in fatal-noisy environment such as factories.



インフォメーションブースとして、そして世界中につながるBodyphon

If installing a tablet and digital signage terminal to Bodyhon, it will become information booth.In the future, by adding a WiFi and a base station, it will be the user's private internet booths. You can expect a variety of leverage scene by further combination with the app. For example, a network spread around the world, when fused with biometric authentication, even future can communicate with anyone without the mobile!

原理・効果

Bodyphonの効果を耳で、測定値で御覧ください。

比較効果サンプルをお聴きください

※Effect is an image.Effect on the installation environment may be different.

実証実験データ:Bodyphonの中に入ると外の音が軽減されるか





実験条件・凡例

rms差約16dBA

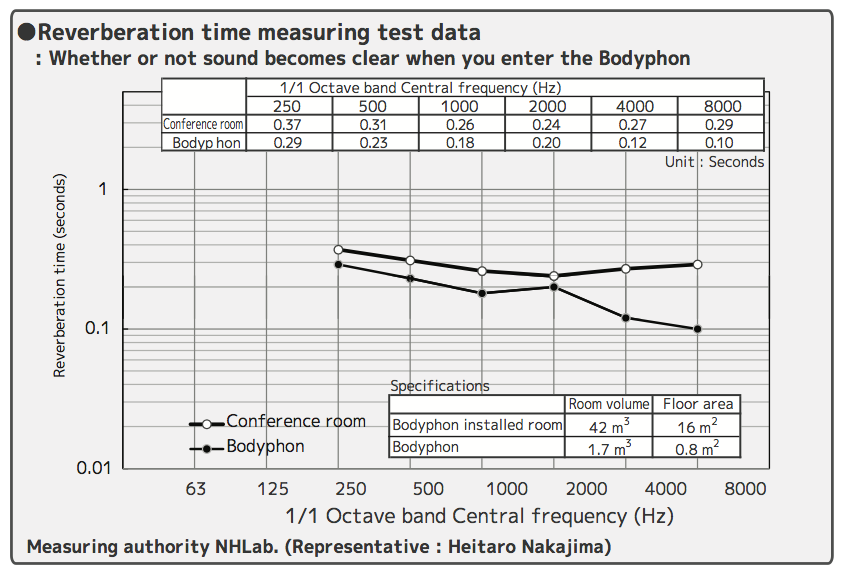

Bodyphonの中に入ると音がクリアになるか

構造とデザイン

Bodyphonの独自の構造・デザインにより自由度の高い施工・カスタマイズが可能です。

広告施工例

音を聞きとりやすいバリアフリー空間として

The harmony of the opened booth structure and function of the sound absorbing material,You can enjoy the sound of realism even in fragile sound source. Original sound will not be heard well because in a normal room reach voice that is irregularly reflected by the wall, but it is possible to suppress the diffuse reflection by absorbing sound in this booth, you will be able to deliver the original sound.
Even if you were hard to hear the sound by draft noise until now, is audible structure the "clear sound" that outline.

機能の拡張

This product has become possible to wiring. Can be fixed by Seismic gel, anchor bolt

組立構造

Easy decomposition.Easy transport.

Bodyphon製品仕様

Outside: H2,125mm x Φ1,140mm  Weight:67kg
Material: Aluminium,Steel, ABS, Acoustic absorbent material
Price: ¥550 ,000 (Cost for assembling ¥40 ,000) /1unit. JP YN,Shipping,Installing(Customer owned)
